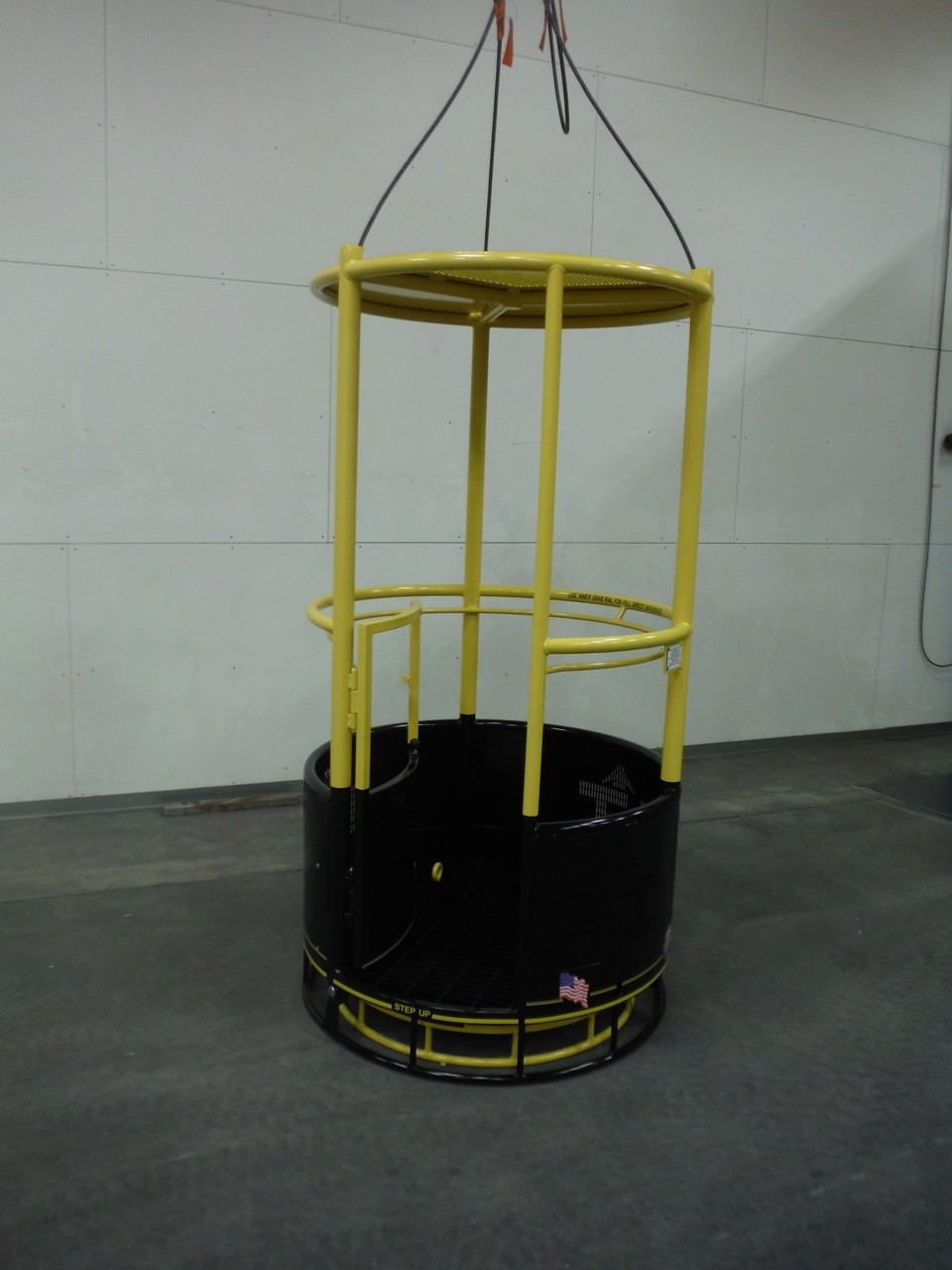

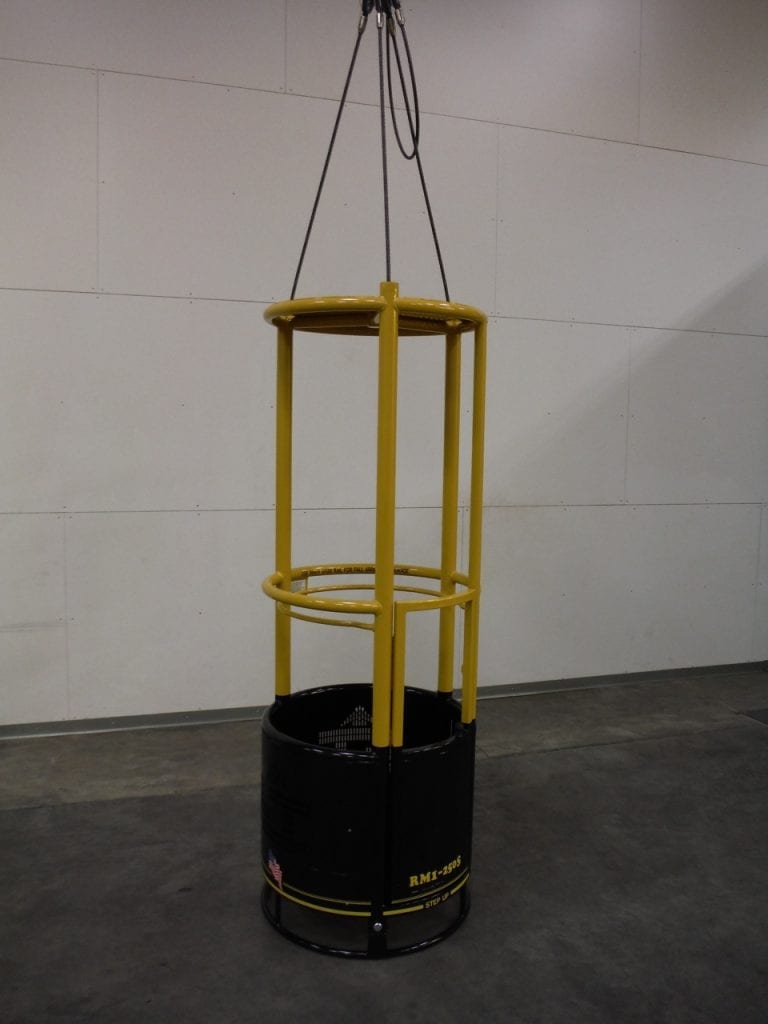

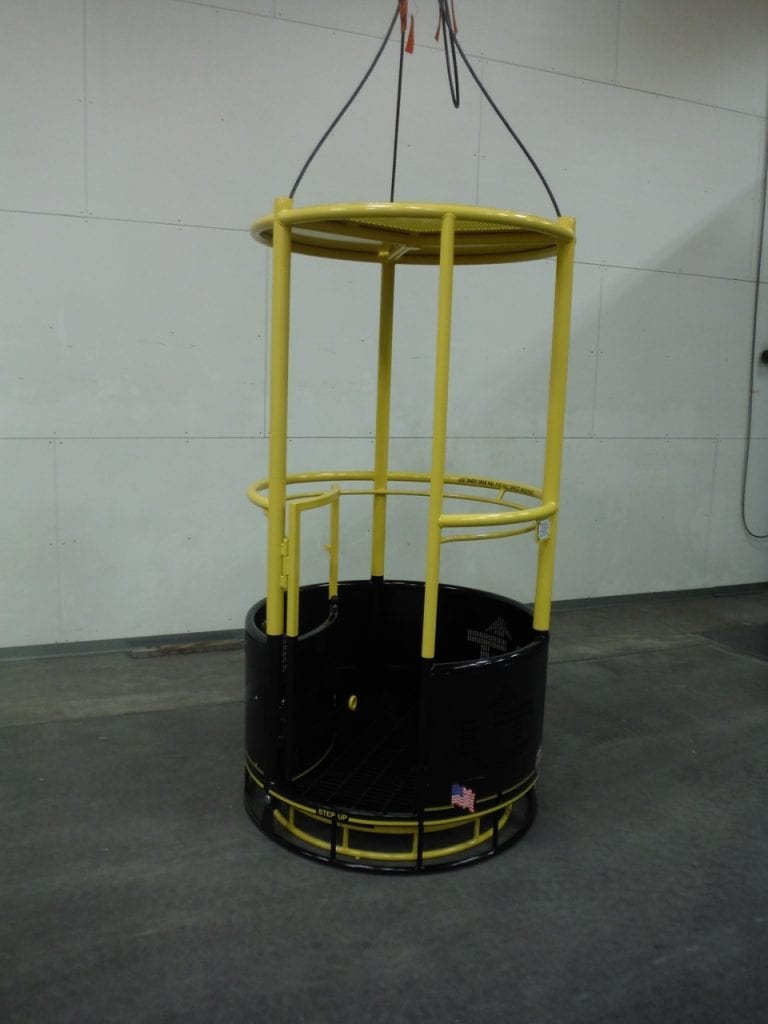

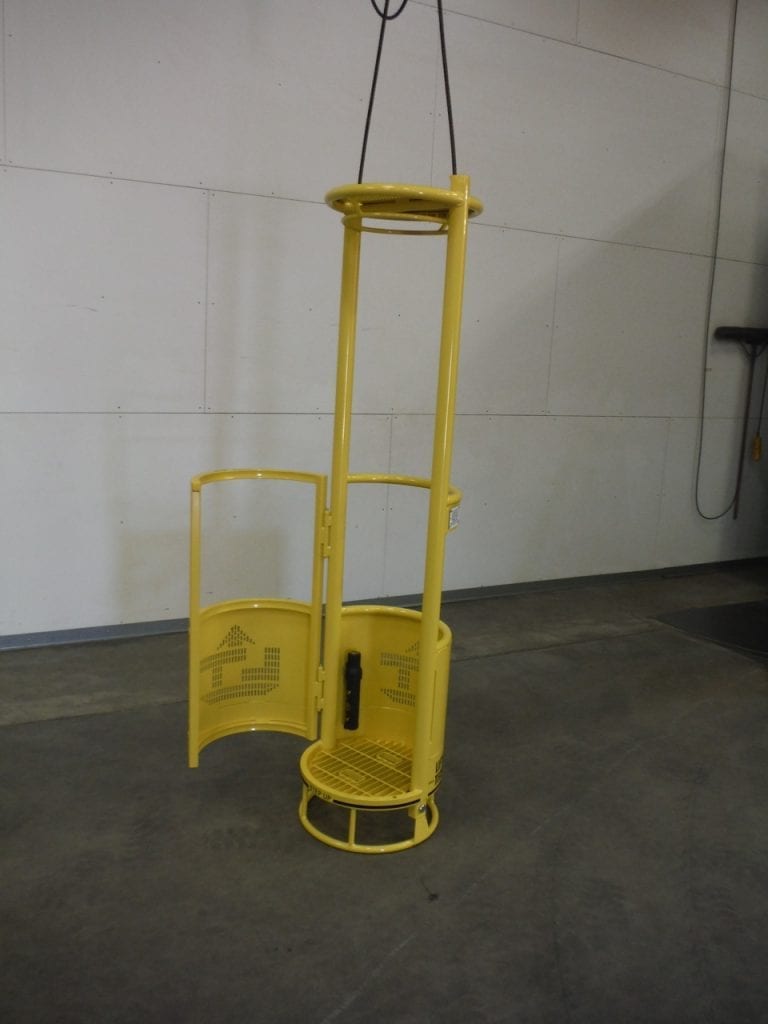

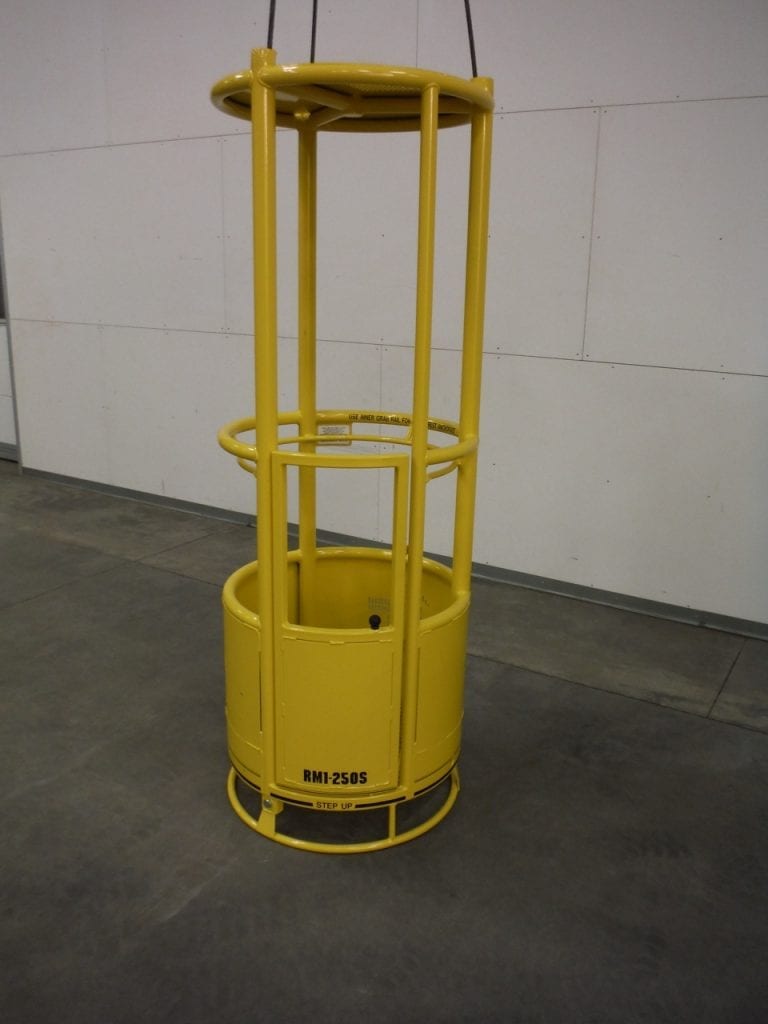

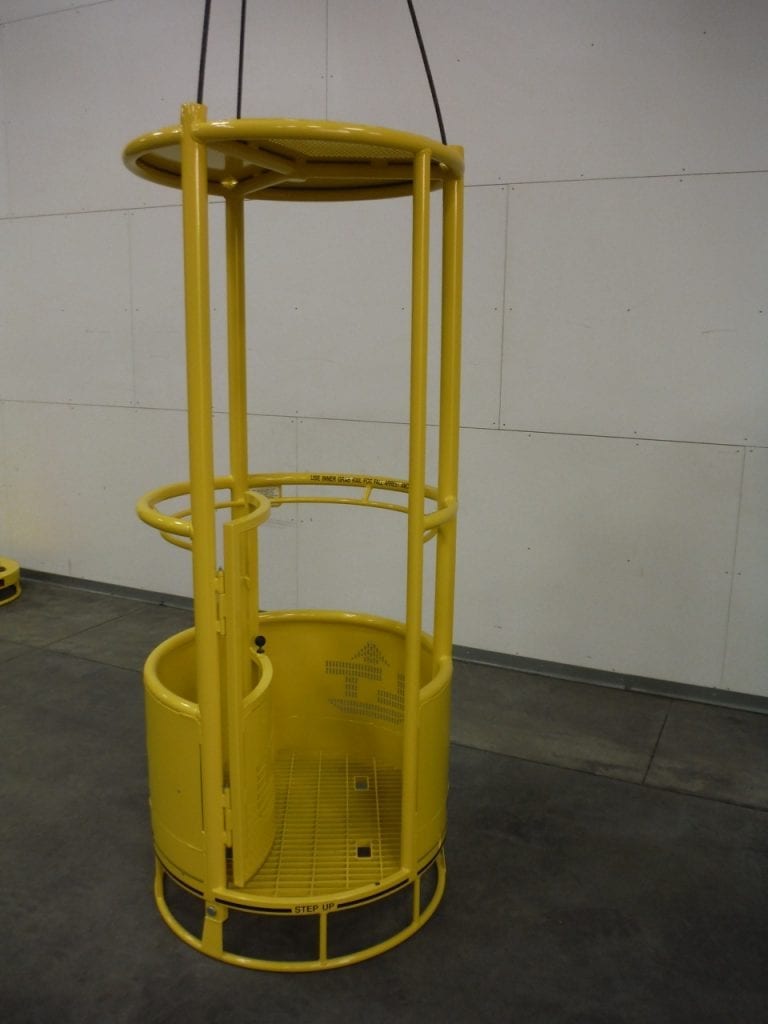

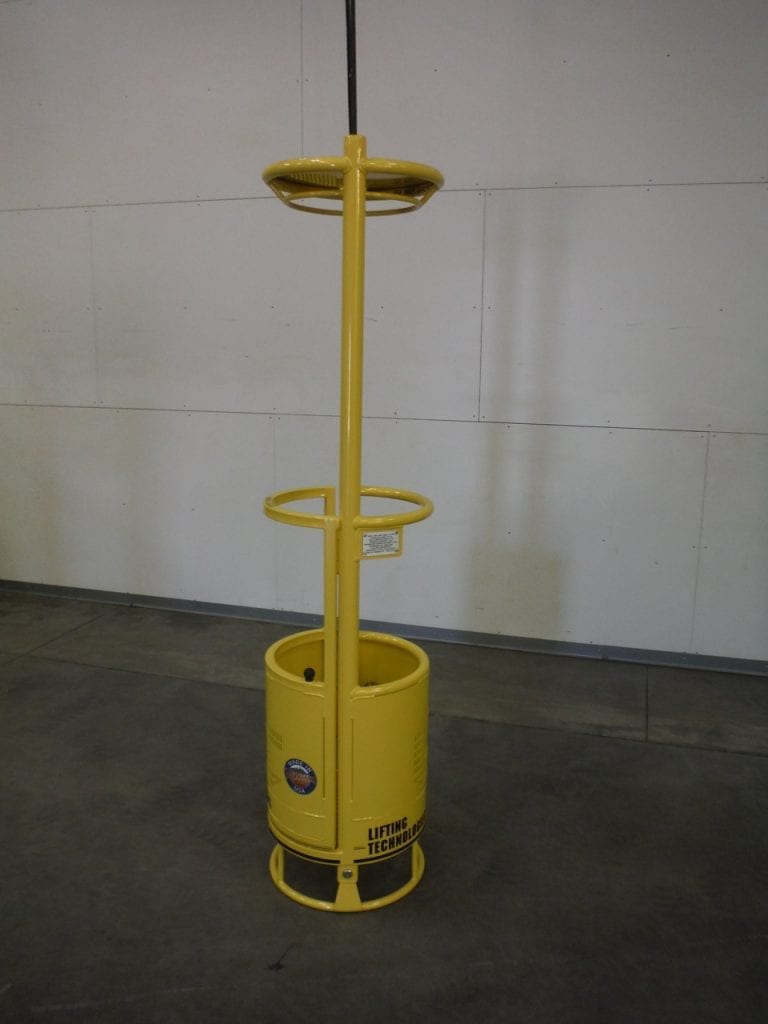

Round Crane-Suspended Man Baskets
Our standard round model has an OSHA Certificate of Compliance. The round shape minimizes size while offering efficient workspace. Each model comes equipped with our Test Weight System so you can be certain your man basket is safe to use on each job site.
We offer standard, economy, and custom crane-suspended round man baskets of almost any shape and size.
All man baskets are sold as a "turn-key" package and come equipped with LT's unique test weight system, sling assembly and training DVD.
Standard, Round Crane Man Basket Features
- Dedicated base-attached suspension system which minimizes platform tipping and provides even load distribution
- Electrostatic powder coat finish which provides high resistance to impact, abrasions, chemicals, and corrosion. (Available in our standard safety yellow and black or choose a custom color of your own as an additional option.)
- Unique easy-on/easy-off detachable test weight system
- Heavy-gauge steel frame and floor grating to provide solid platform support
- High-strength 0.140” and 0.145” wall, 1.660” and 1.900” O.D. steel round tubing frame
- Sling assembly suspension system of 1/2” 6x36 IWRC wire rope, secured to a master link, and attached to platform base by swage sockets and safety threaded clevis pins. Also included is a safety leg for tie-off to load line above overhaul ball
- Sides enclosed with perforated steel plate from toe-board to mid-rail
- 42” high guard rail and grab rail inside entire perimeter providing personal fall arrest anchorage in compliance with OSHA, part 1926.502, subpart M
- Optional access gate, with positive restraining device
- Optional overhead protection, with perforated steel skylights, 6’ 7” above platform floor
- Heavy-duty plastic data plates provide unit weight, maximum rated load capacity, maximum occupancy, test weight, and serial number
- A three-year manufacturer's warranty
- AWS certified welding procedures performed by certified welders.
- Use and Safety Handbook and training DVD explaining OSHA rule
- Certificate of OSHA compliance provided with each platform in documentation tube.
Crane Man Basket Dimensions
Round Man Baskets
|MAX RATED LOAD CAPACITY (Lbs)||TEST WEIGHT (Lbs)||BASKET WEIGHT (Lbs)|
Round Man Baskets With Overhead Protection
|DIAMETER (In)||MAX RATED LOAD CAPACITY (Lbs)||TEST WEIGHT (Lbs)||BASKET WEIGHT (Lbs)|
Man baskets have a 42" guardrail height from the floor and overhead models have a 79" inside height from the floor to overhead frame. All dimensions are outside dimensions. Rated load capacity of all models may be increased. Overhead protection is available on all models. Lifting Technologies welcomes inquiries for custom-designed platforms of almost any size or shape.
