PROFESSIONAL MAN BASKET (ROUND)

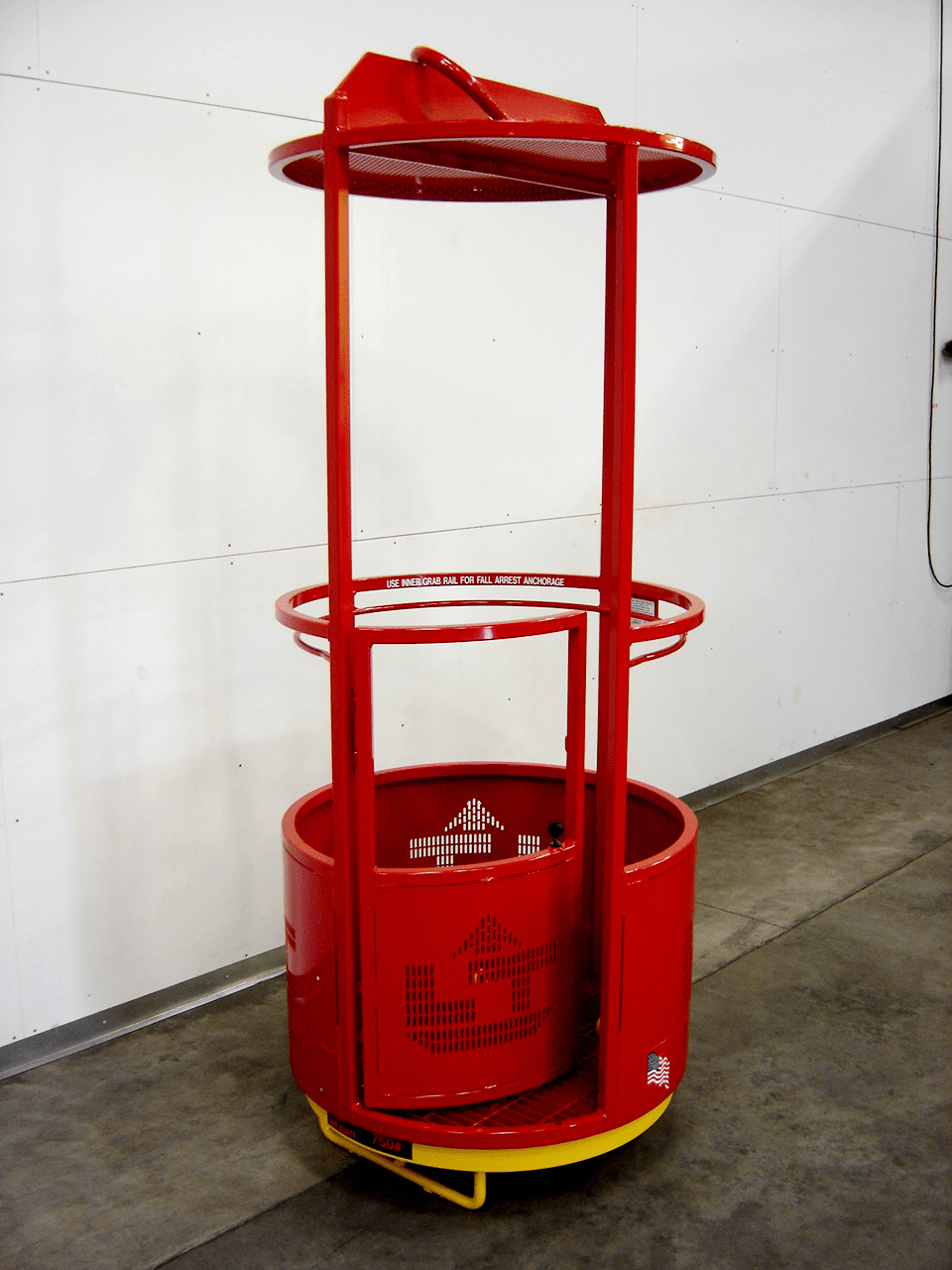

Affordable Man Basket Model ERM2-600-38

Crane-Suspended Round Man Baskets

A high-strength steel square tubing construction sets the stage for a high-quality man basket despite the budget-friendly price. Each crane man basket sold through Lifting Technologies comes with an OSHA compliant guarantee and our unique detachable Test Weight System, ensuring maximum safety below the hook and full compliance with OSHA.

These solid red baskets are lighter in weight than our Premier series but come with a high-strength 0.120" wall, 1.250" or 1.500" square tubular steel frame.

Professional, Round Crane Man Basket Features

Lifting Technologies logo

Features include:

  • Electrostatic powder coat finish which provides high resistance to impact, abrasions, chemicals, and corrosion. Available in our standard red (test weight in yellow) or choose a custom color of your own as an additional option.
  • Unique easy-on/easy-off detachable test weight system
  • Heavy-gauge steel frame and floor grating to provide solid platform support
  • 42" high guardrail and full-perimeter inner grab rail providing personal fall arrest anchorage in compliance with OSHA, part 1926.502, subpart M
  • Perforated steel sides from toe-board to mid-rail
  • Access gate, with positive restraining device
  • Smaller diameter series have a 1/2" thick steel lifting bar with integrated masterlink.
  • Larger diameter series have a sling assembly suspension system of 1/2" 6x36 IWRC wire rope, secured to a master link.
  • AWS certified welding procedures performed by certified welders
  • Most series include overhead protection, with perforated steel skylights, 6’ 7” above platform floor
  • A three-year manufacturer’s warranty
  • Use and Safety Handbook and training DVD explaining OSHA rule
  • Certification of OSHA compliance provided with each platform in documentation tube

Download the product brochure

Crane Round Man Basket Dimensions

Round Professional Man Baskets

PROFESSIONAL ROUND MODELS DIAMETER (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
ERM3-900/48 (Slings) 48 900 1125 350
ERM4-1200/60 (Slings) 60 1200 1500 530

Round Professional Man Baskets With Overhead Protection

PROFESSIONAL ROUND MODELS DIAMETER (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
ERM1-250/19 19 250 313 180
ERM1-250/21 21 250 313 200
ERM1-250/26 26 250 313 240
ERM1-250/32 32 250 313 300

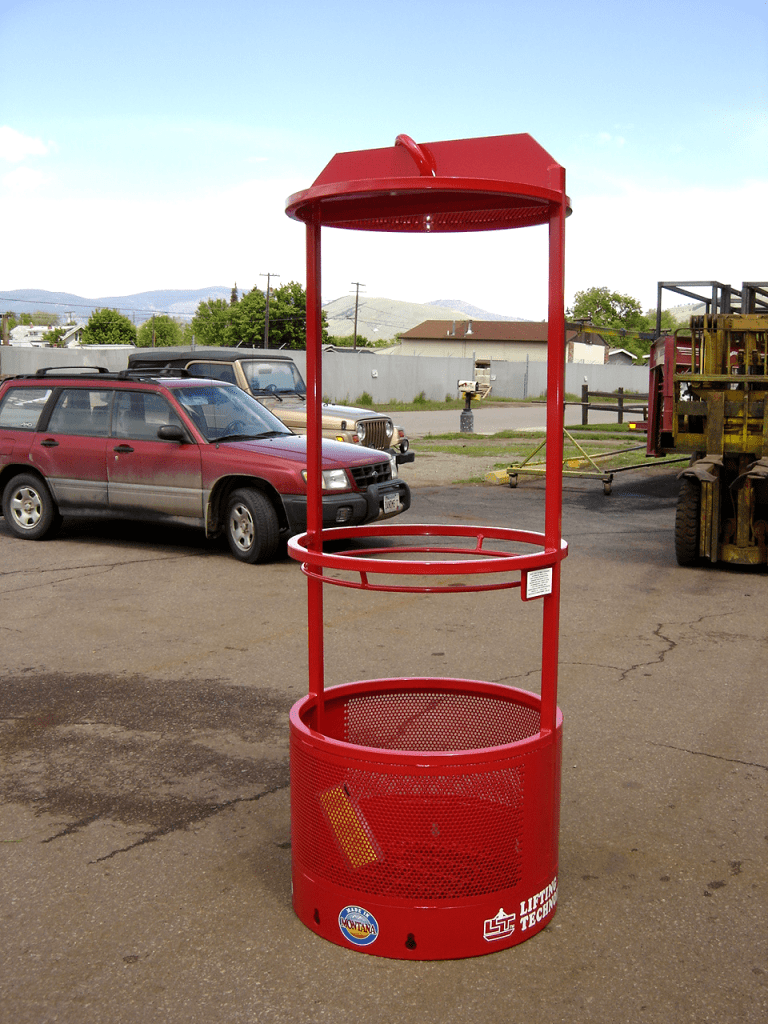

ERM1-300/26 26 300 375 240
ERM1-300/32 32 300 375 300
ERM2-600/38 38 600 750 340
ERMO3-900/48 (Slings) 48 900 1125 450
ERMO4-1200/60 (Slings) 60 1200 1500 595

Man baskets have a 42" guardrail height from the floor and overhead models have a 79" inside height from the floor to overhead frame. All dimensions are outside dimensions. Rated load capacity of all models may be increased. Overhead protection is available on all models. Lifting Technologies welcomes inquiries for custom-designed platforms of almost any size or shape.

Download the product brochure
