PROFESSIONAL CRANE MAN BASKET

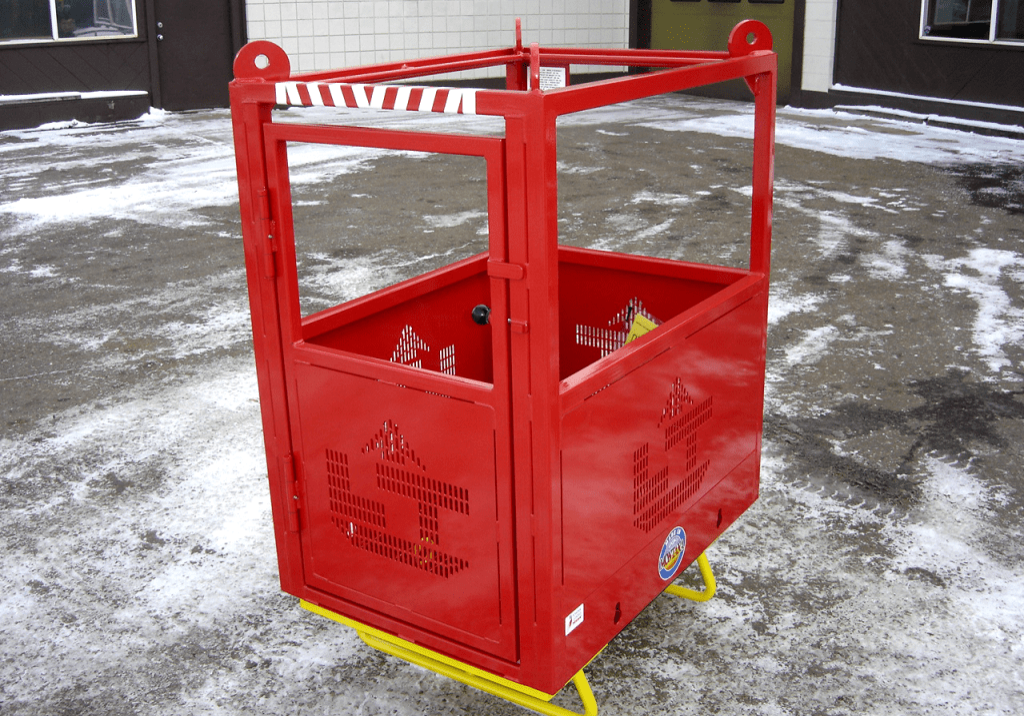

REC1-300_(10) (1)

Affordable crane-suspended man basket series

Lifting Technologies Professional series man baskets are built for the more budget-conscious user but provide many of the safety and quality features of our premier line, including the unique detachable Test Weight System and an electrostatic powder coat finish.

These solid red baskets are lighter in weight than our premier series but come with a high-strength 0.120" wall, 1.500" square tubular steel frame and are available in square, round, and rectangular sizes.

Every man basket model from Lifting Technologies comes with our specialized detachable Test Weight System allowing for easy testing between jobs. This ensures maximum safety below the hook and full compliance with OSHA.

All man baskets are sold as a "turn-key" package and come equipped with LT's unique test weight system, sling assembly, and training DVD.

Professional Man Basket Features

Lifting Technologies logo

Features include:

  • An electrostatic powder coat finish that provides high resistance to impact, abrasions, chemicals, and corrosion. Available in our standard red (test weight in yellow) or choose a custom color of your own as an additional option.
  • Unique easy-on/easy-off detachable test weight system
  • Heavy-gauge steel frame and floor grating to provide solid platform support
  • 42" high guardrail and full-perimeter inner grab rail providing personal fall arrest anchorage in compliance with OSHA, part 1926.502, subpart M
  • Perforated steel sides from toe-board to mid-rail
  • Access gate, with positive restraining device
  • Four-leg sling assembly suspension system of 1/2" 6x36 IWRC wire rope, secured to a master link. Also included is the fifth leg for tie-off to load line above overhaul ball. Non-overhead models have slings protected with a nylon cover.
  • Grab rail inside entire perimeter providing personal fall arrest system
  • AWS certified welding procedures performed by certified welders
  • Optional overhead protection, with perforated steel skylights, 6’ 7” above the platform floor
  • A three-year manufacturer’s warranty
  • Use and Safety Handbook and training DVD explaining OSHA rule
  • Certification of OSHA compliance provided with each platform in documentation tube.

Download the product brochure

DOWNLOAD BROCHURE

  • This field is for validation purposes and should be left unchanged.

Request a quote for a Professional Crane Man Basket.

REQUEST A QUOTE

Learn More About Our Custom Crane Man Baskets

Explore our custom-made Crane-Suspended Man Basket models.

Professional Man Basket Dimensions

Rectangular Professional Man Basket

  DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
RECTANGULAR PROFESSIONAL MODELS Width Length
REC1-300 28.25 38 300 375 305

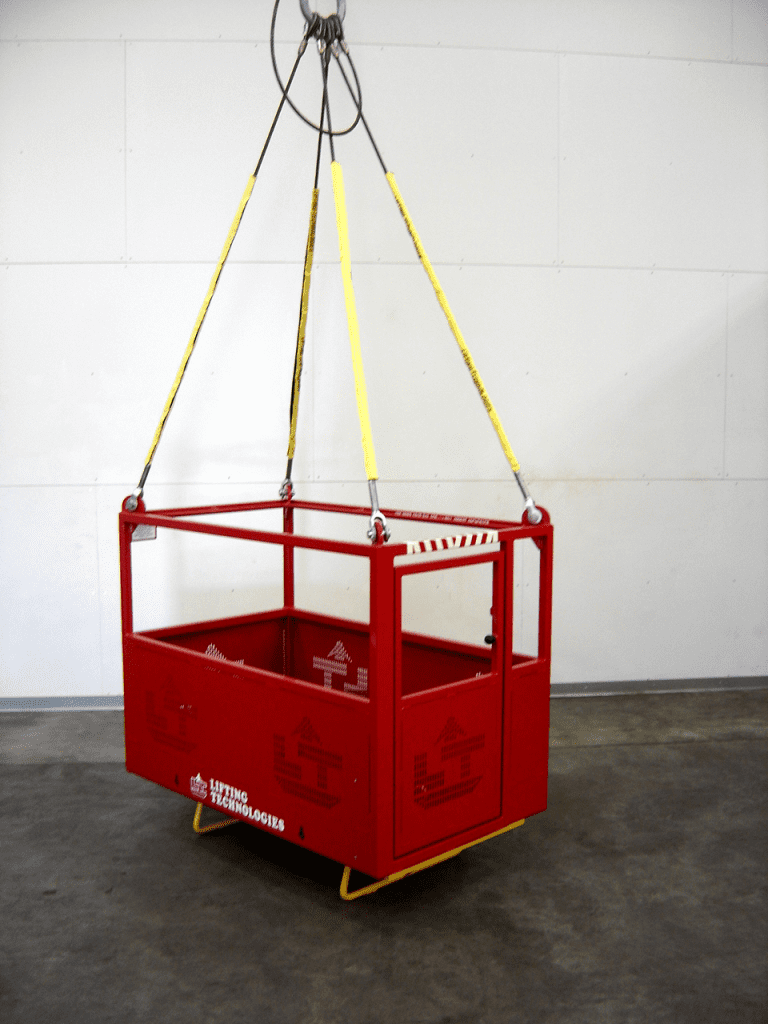

REC2-600 36 60 600 750 410
REC3-900 36 84 900 1125 570
REC4-1200 36 108 1200 1500 645

Rectangular Professional Man Basket With Overhead Protection

  DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
RECTANGULAR PROFESSIONAL MODELS Width Length
RECO1-300 28.25 38 300 375 405
RECO2-600 36 60 600 750 530

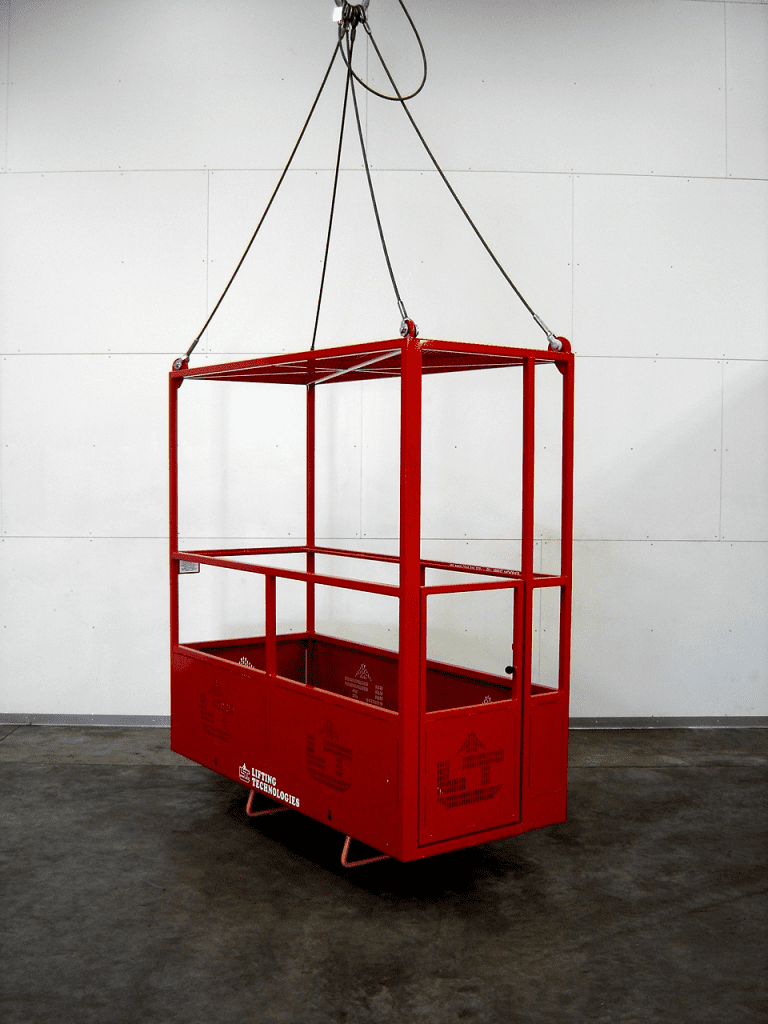

RECO3-900 36 84 900 1125 640
RECO4-1200 36 108 1200 1500 825

Square Professional Man Basket

  DIMENSIONS(In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
SQUARE PROFESSIONAL MODELS Width Length
SEC1-300 28.25 28,25 300 375 250
SEC2-600 48 48 600 750 405
SEC3-900 48 48 900 1125 405
SEC4-1200 58 58 1200 1500 585

Square Professional Man Basket With Overhead Protection

  DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
SQUARE PROFESSIONAL MODELS Width Length
SECO1-300 28.25 28,25 300 375 420

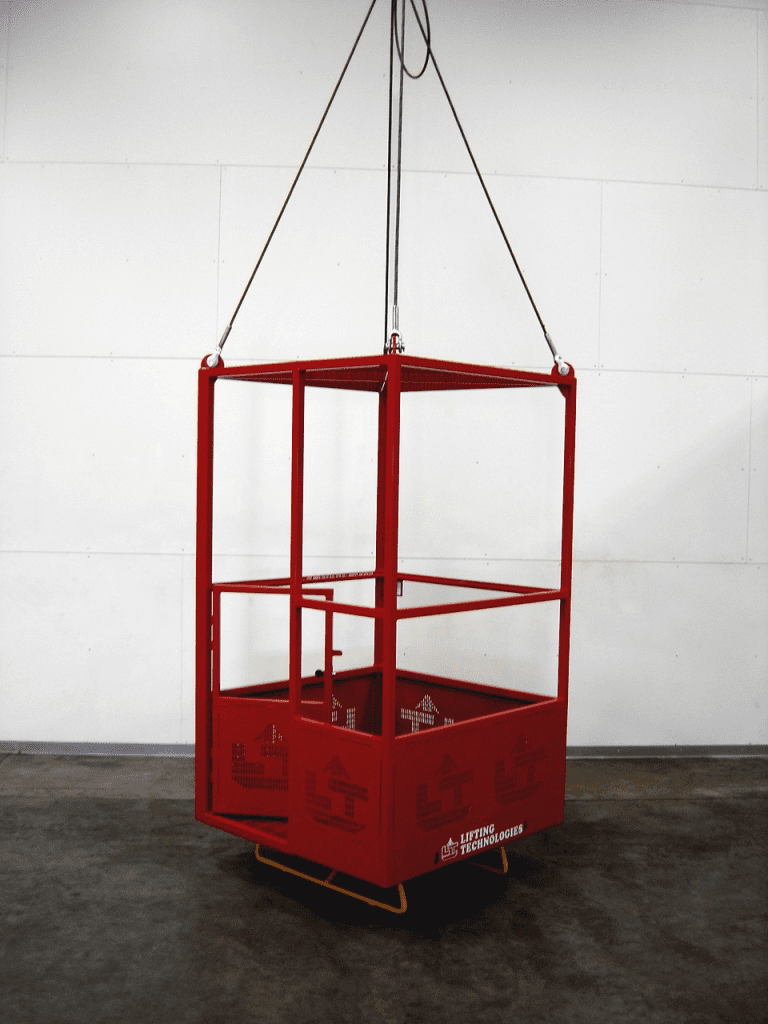

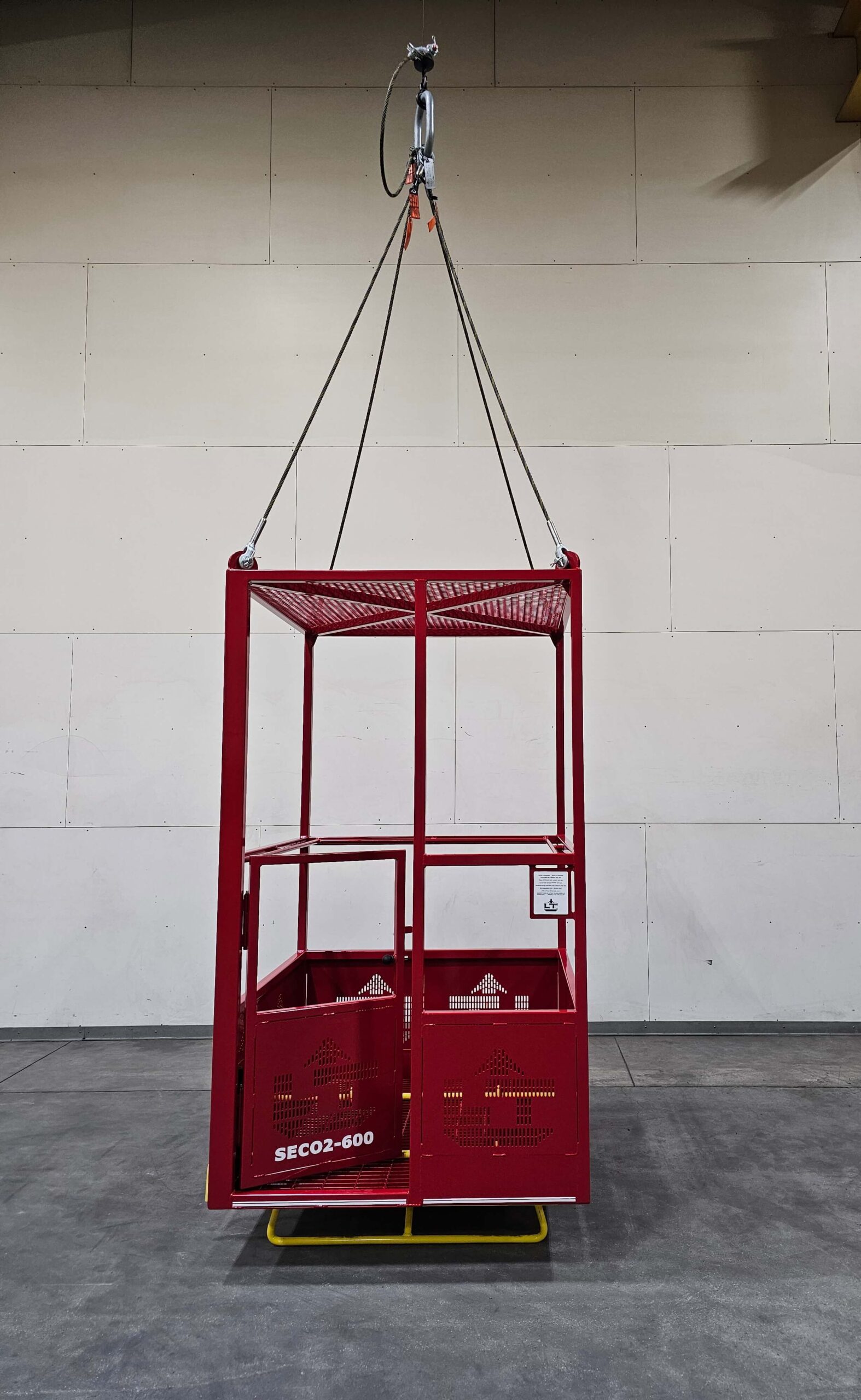

SECO2-600 48 48 600 750 525
SECO3-900 48 48 900 1125 525
SECO4-1200 58 58 1200 1500 740

Round Professional Man Basket

ROUND PROFESSIONAL MODELS DIAMETER (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)

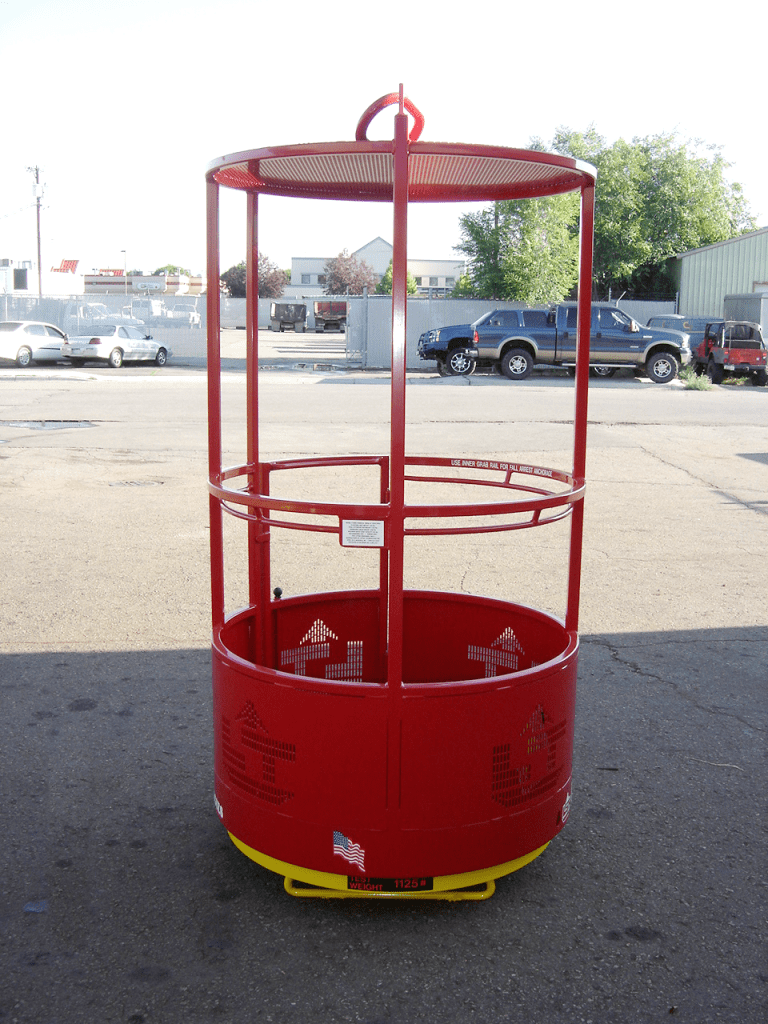

ERM3-900/48 (Slings) 48 900 1125 350
ERM4-1200/60 (Slings) 60 1200 1500 530

Round Professional Man Basket With Overhead Protection

ROUND PROFESSIONAL MODELS DIAMETER (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
ERM1-250/19 19 250 313 180

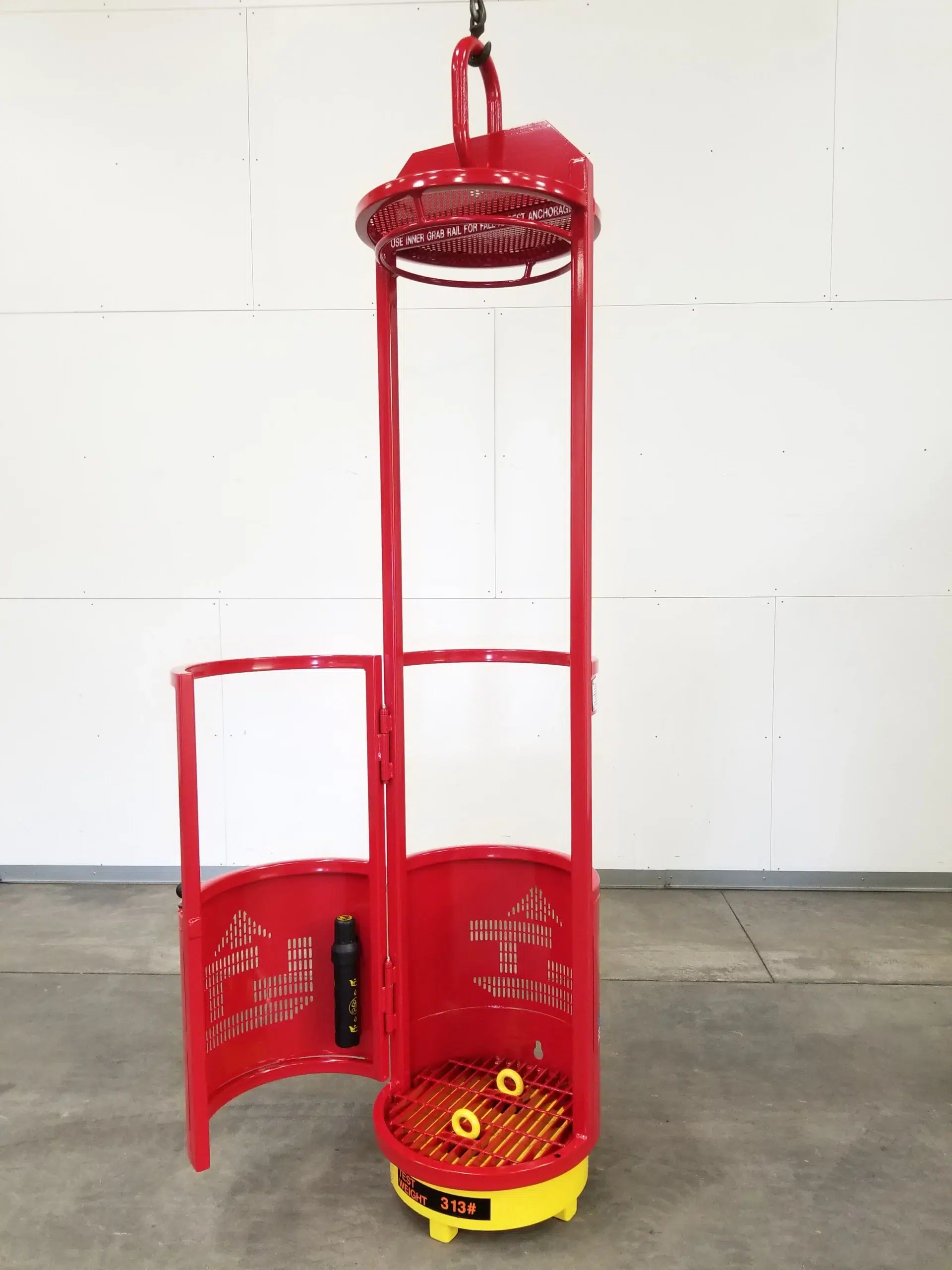

ERM1-250/21 21 250 313 200
ERM1-250/26 26 250 313 240
ERM1-250/32 32 250 313 300
ERM1-300/26 26 300 375 240
ERM1-300/32 32 300 375 300

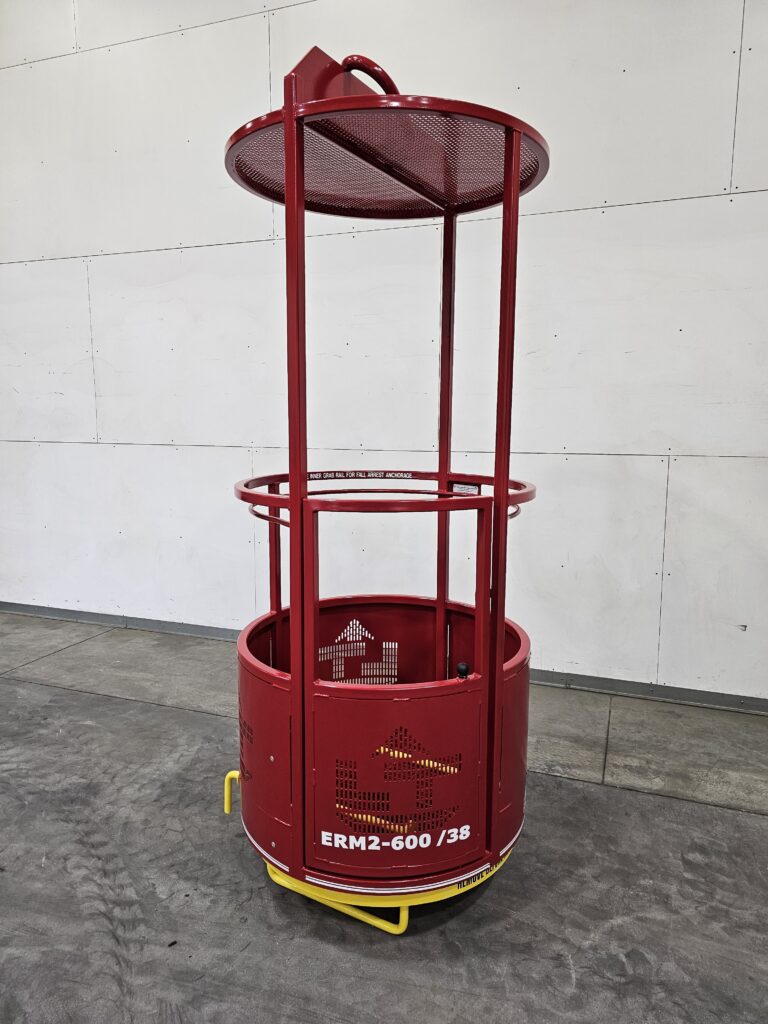

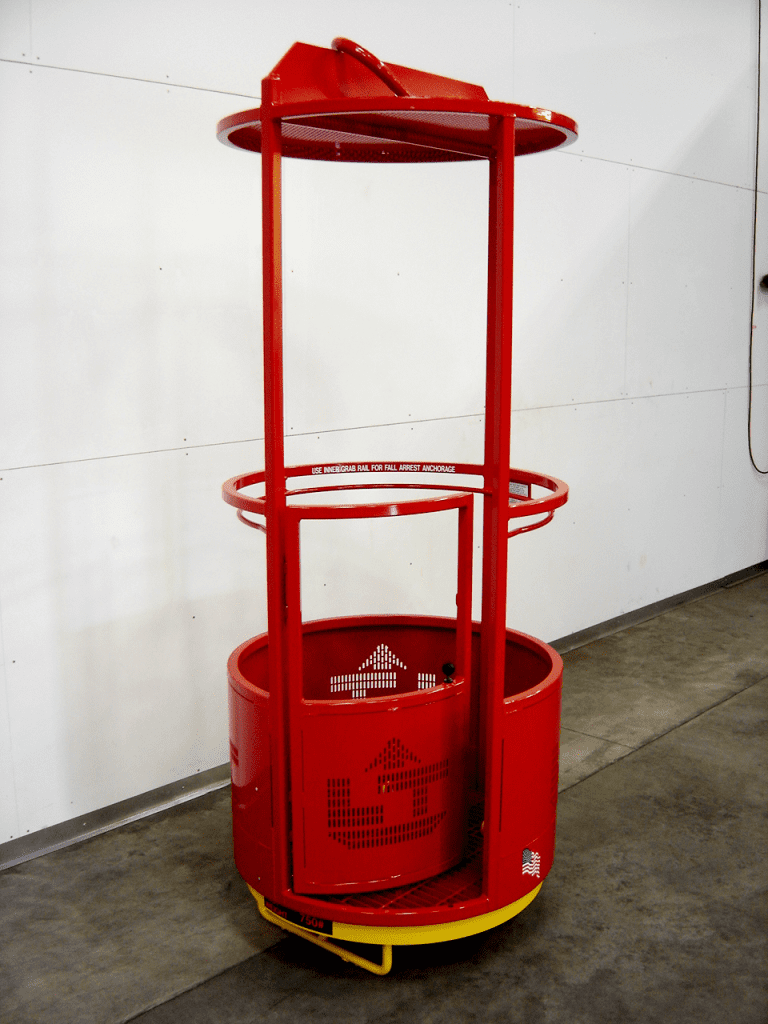

ERM2-600/38 38 600 750 340
ERMO3-900/48 (Slings) 48 900 1125 450
ERMO4-1200/60 (Slings) 60 1200 1500 595

Man baskets have a 42" guardrail height from the floor and overhead models have a 79" inside height from the floor to overhead frame. All dimensions are outside dimensions. The rated load capacity of all models may be increased. Overhead protection is available on all models. Lifting Technologies welcomes inquiries for custom-designed platforms of almost any size or shape.
