RESCUE MAN BASKET

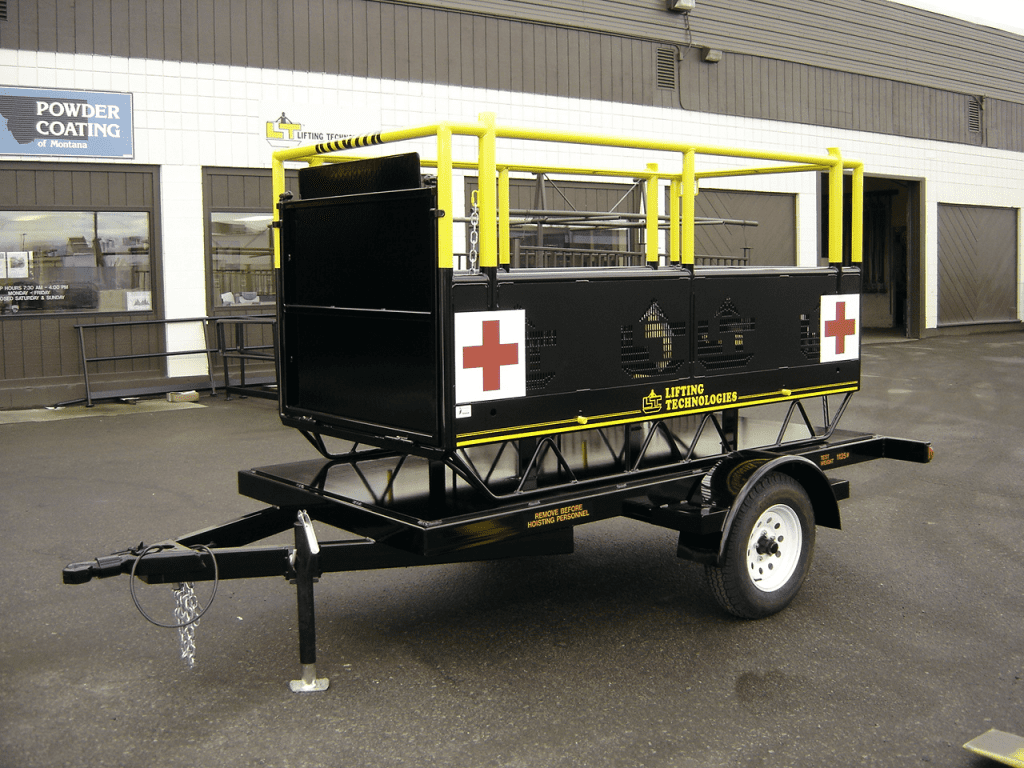

Rescue Safety Cage with Trailer

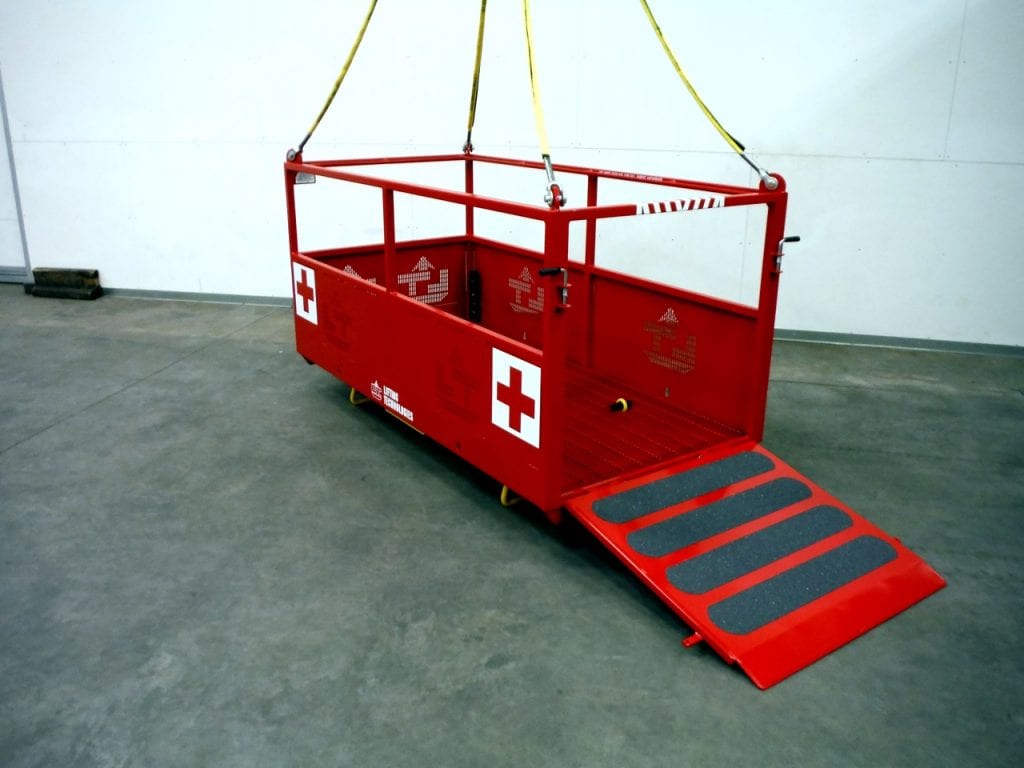

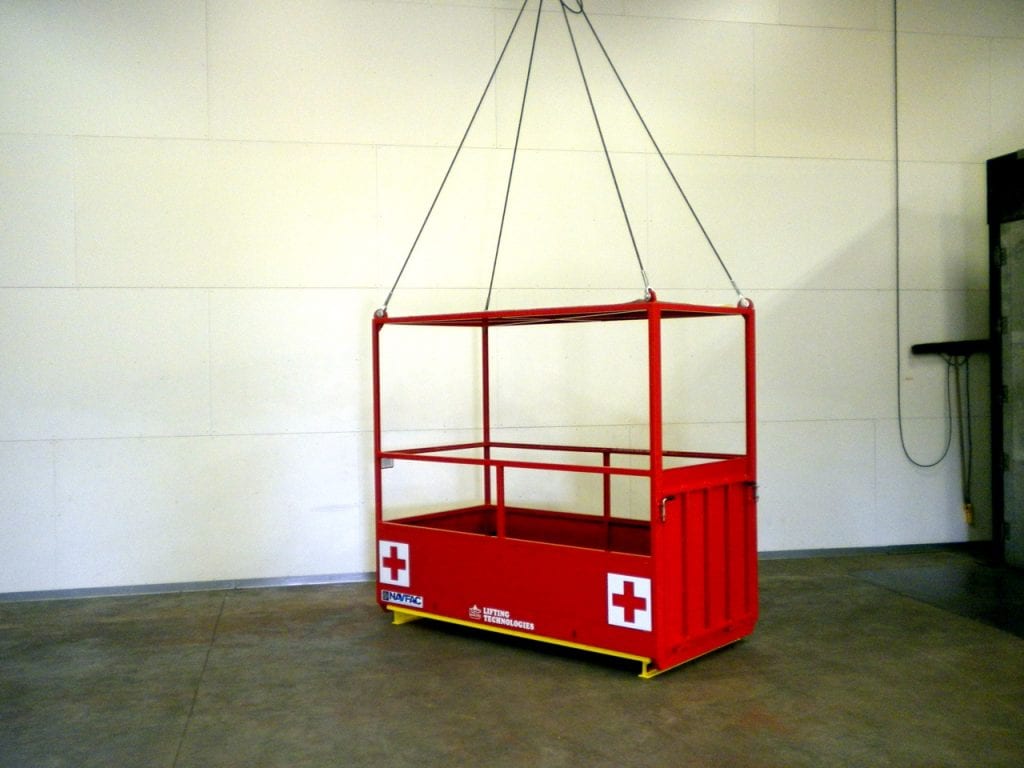

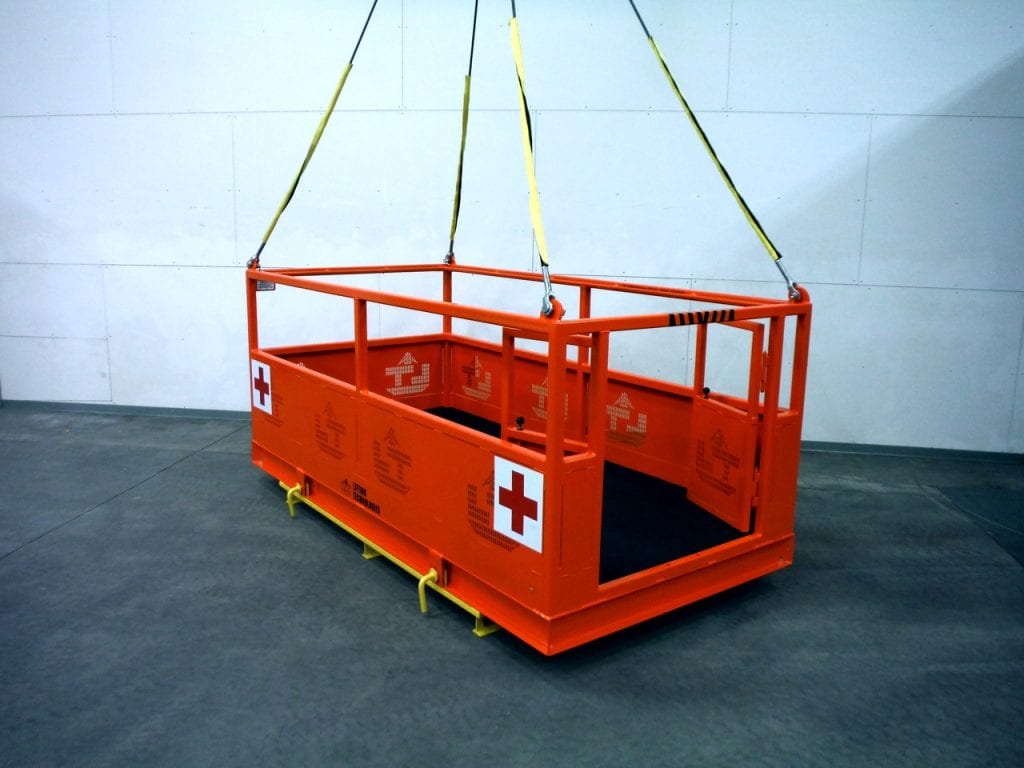

Emergency Rescue Man Baskets & Platforms

The industry standard for safety, Lifting Technologies crane-suspended rescue baskets have been used at construction sites around the country including the famous "Big Dig" in Boston.

Both our Premier and Professional Series rescue baskets are 4’ X 8’ and can safely accommodate two technicians and a gurney with a special drop-down ramp for roll-on access. Custom sizes and configurations of rescue platforms are available.

Made with high-strength steel construction and a unique detachable Test Weight System our rescue man baskets ensure maximum safety below the hook and full compliance with OSHA.

Emergency Rescue Man Basket Features

Lifting Technologies logo

Features include:

  • An electrostatic powder coat finish that provides high resistance to impact, abrasions, chemicals, and corrosion. Available in our standard red (test weight in yellow) or choose a custom color of your own as an additional option.
  • Unique easy-on/easy-off detachable test weight system
  • Heavy-gauge steel frame and floor grating to provide solid platform support
  • Four-leg sling assembly suspension system of 1/2" 6x36 IWRC wire rope, secured to a master link. Also included is the fifth leg for tie-off to load line above overhaul ball
  • Perforated steel sides from toeboard to mid-rail
  • 42" high guardrail and full-perimeter inner grab rail providing personal fall arrest anchorage in compliance with OSHA, part 1926.502, subpart M

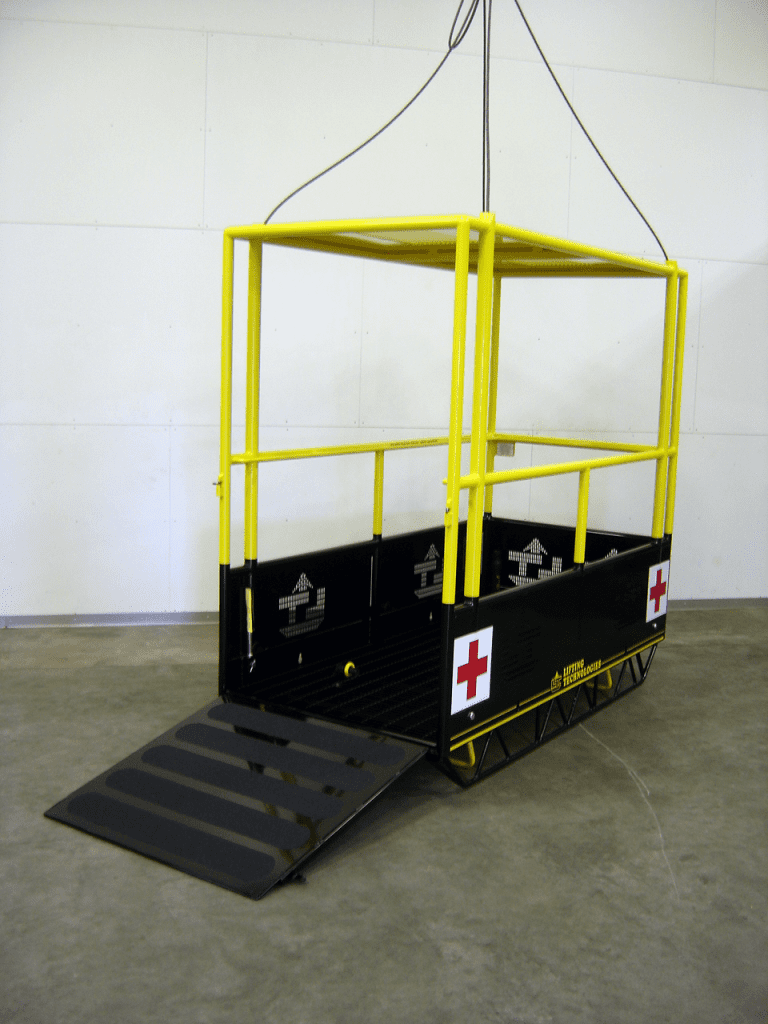

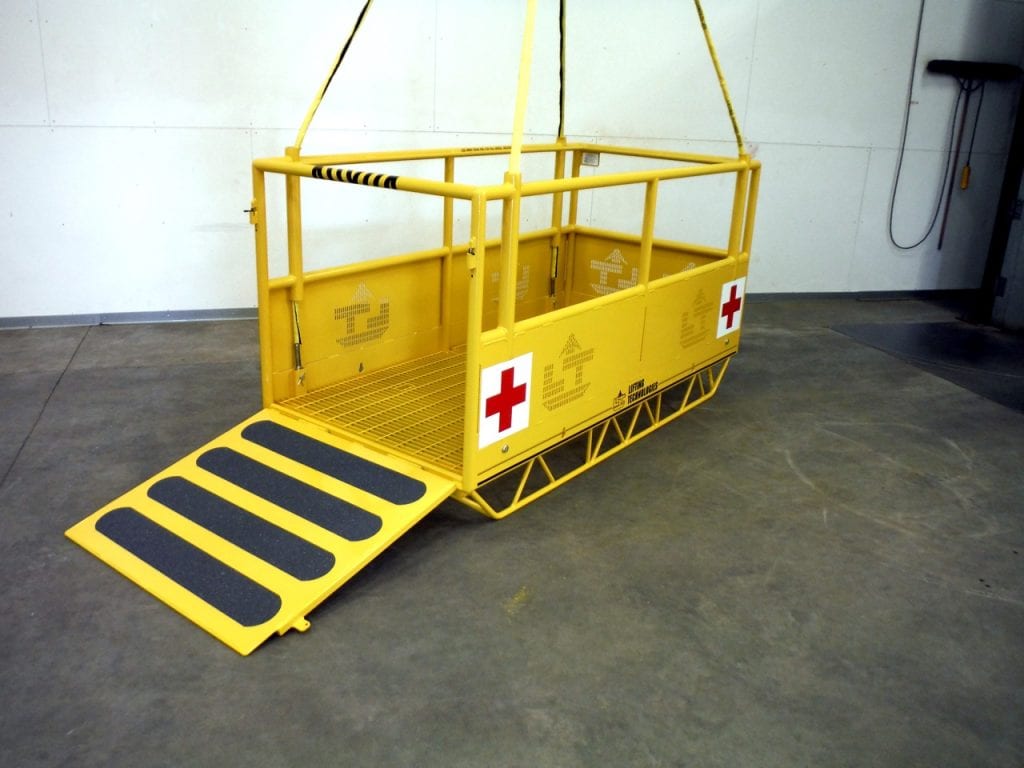

  • Dropdown access ramp

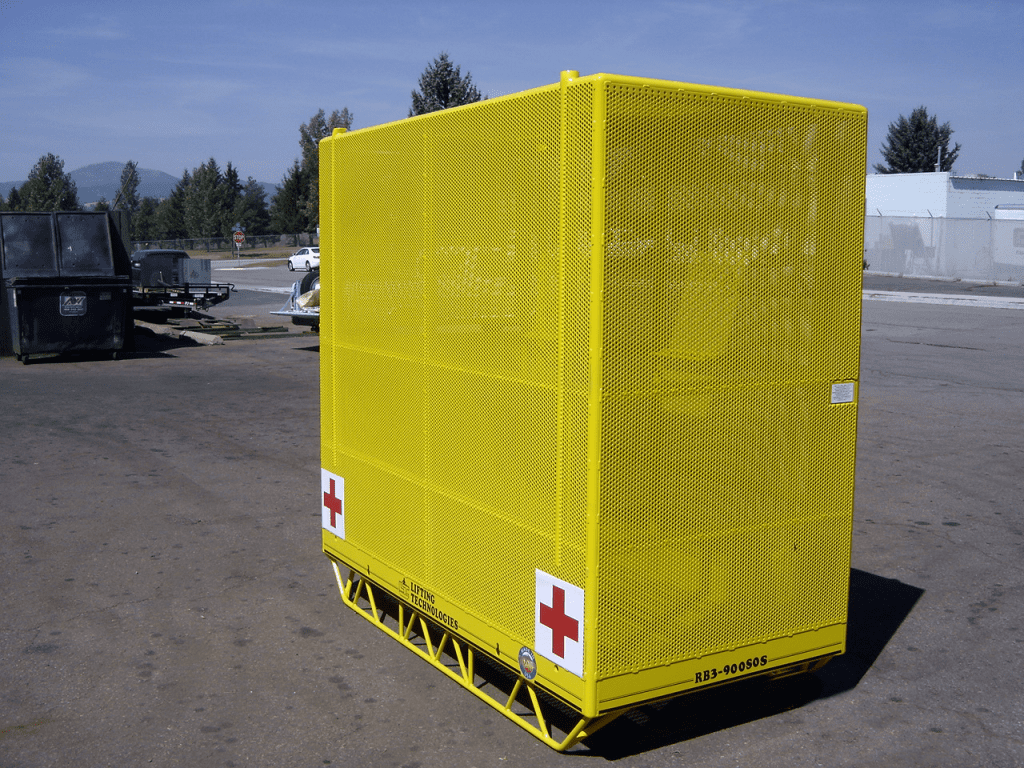

  • Optional overhead protection, with perforated steel skylights, 6’ 7” above the platform floor
  • Red Cross insignia on both long sides of the basket
  • A three-year manufacturer’s warranty
  • Use and Safety Handbook and training DVD explaining OSHA rule.
  • Certification of OSHA compliance provided with each platform in documentation tube

Download the product brochure

DOWNLOAD BROCHURE

  • This field is for validation purposes and should be left unchanged.

Request a quote for a Rescue Man Basket.

REQUEST A QUOTE

Learn More About Our Custom Crane Man Baskets

Explore our custom-made Crane-Suspended Man Basket models.

Rescue Series Crane Man Basket Dimensions

Premier Model Rescue Man Baskets


DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
PREMIER MODELS Width Length
RB3-900 48 96 900 1125 840
RB4-1200 48 96 1200 1500 840
RB3-900S (Overhead) 48 96 900 1125 1130
RB4-1200S (Overhead) 48 96 1200 1500 1130

Professional Model Rescue Man Baskets


DIMENSIONS (In) MAX RATED LOAD CAPACITY (Lbs) TEST WEIGHT (Lbs) BASKET WEIGHT (Lbs)
PROFESSIONAL MODELS Width Length
ERB3-900 48 96 900 1125 750
ERB4-1200 48 96 1200 1500 750
ERBO3-900 (Overhead) 48 96 900 1125 910
ERBO4-1200 (Overhead) 48 96 1200 1500 910
